For Demo purpose I will be using Github as the source control.

Login to GitHub and create a private repository if you don't have one.

Create a Personal Access Token

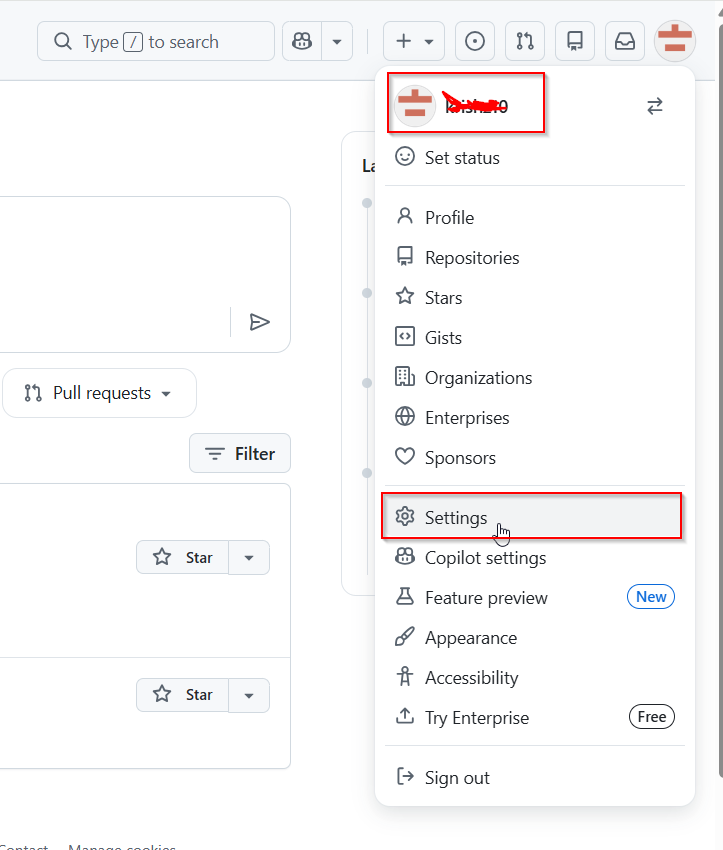

On top right corner click on user navigation Menu and click on settings

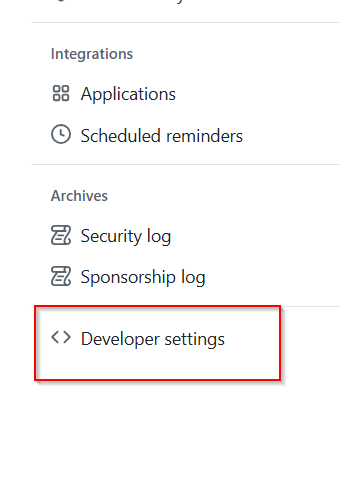

On left side of the page look for Developer setting

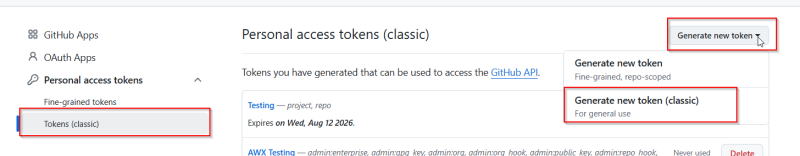

Drop down Personal Access Tokens and select Token

Click on Generate new token and select Generate new token classic.

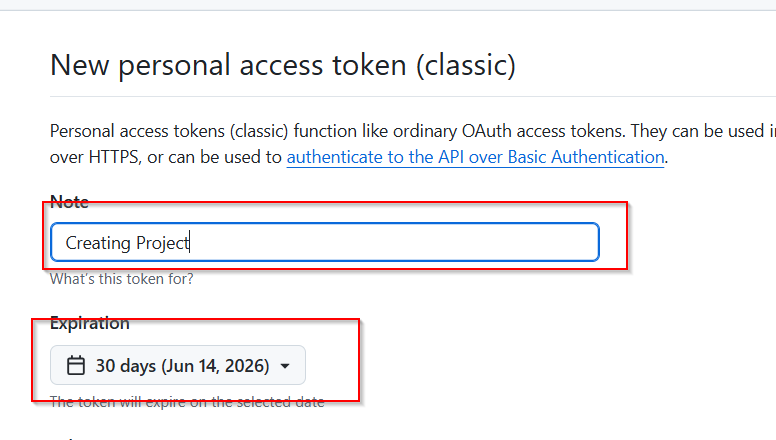

Add note and select expiry

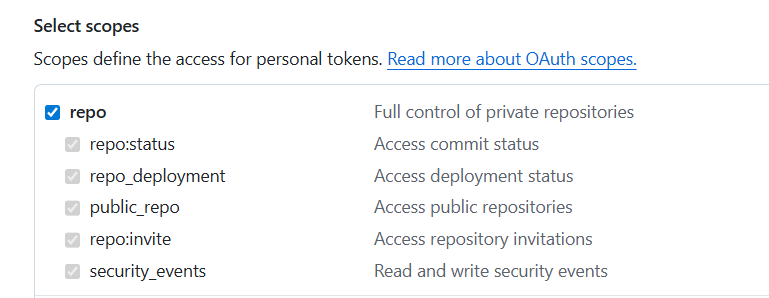

Select repo

Select Project

Generate the token

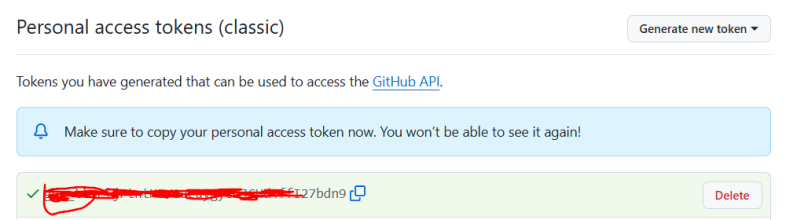

Copy the token and remember if you have lost the token you have to generate new one.

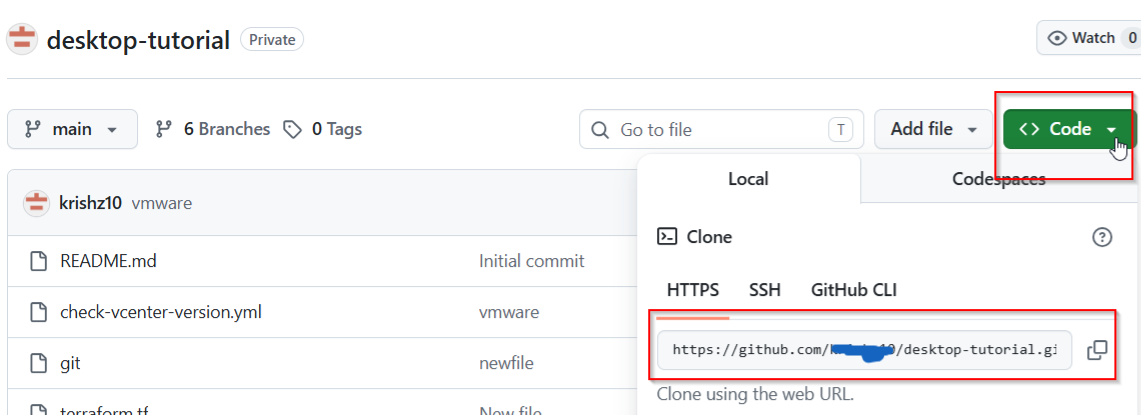

Copy the repo url from github which will be used later when creating project

Create Project

Login to AWX

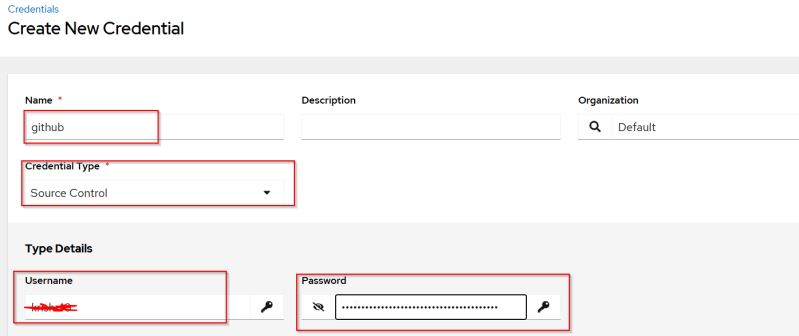

Create Credential for github

Use the username for github and password will the token which we had generated earlier

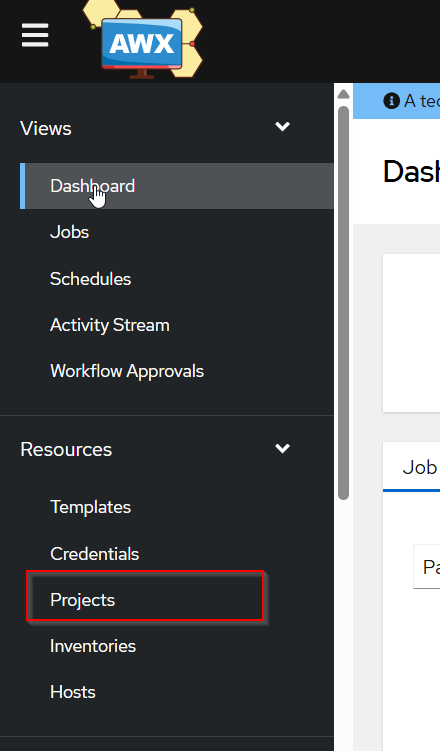

Navigate to Project

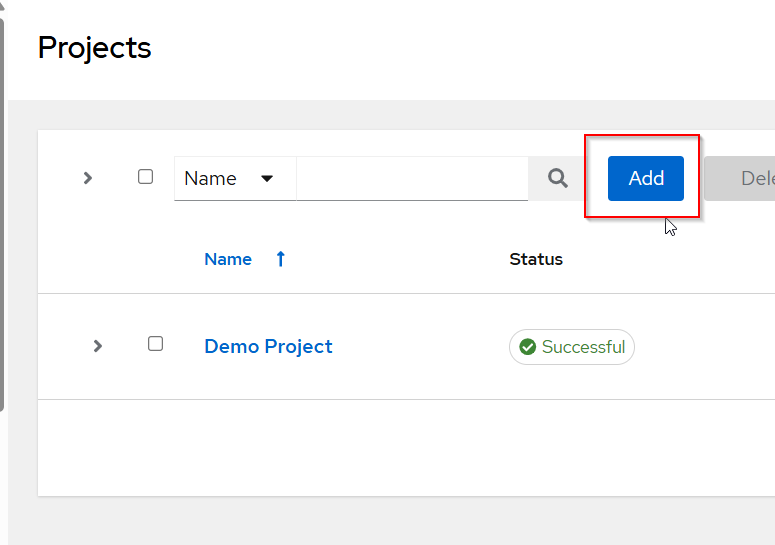

Add new project

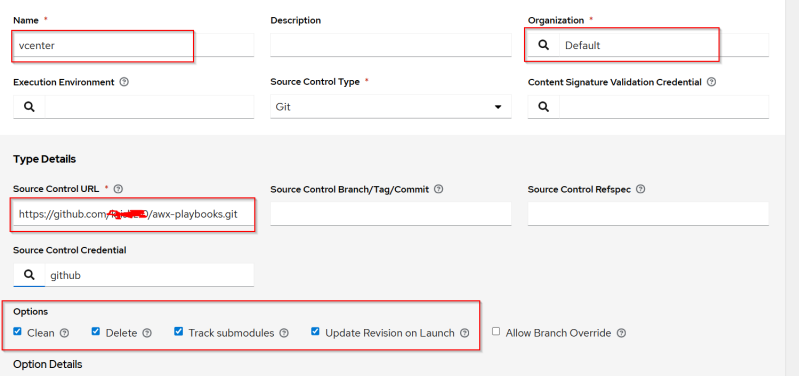

Fill out the form

Name: Name of Project

Organization : Default

Source Control URL : We captured earlier

Source Control Credentials : We created earlier

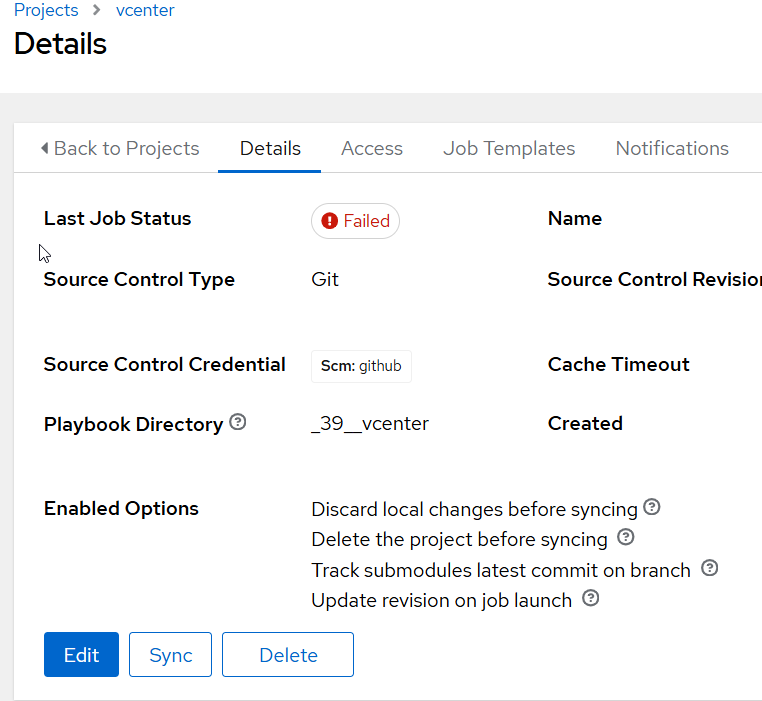

Once the project is created it sync's automatically and we have got an error.

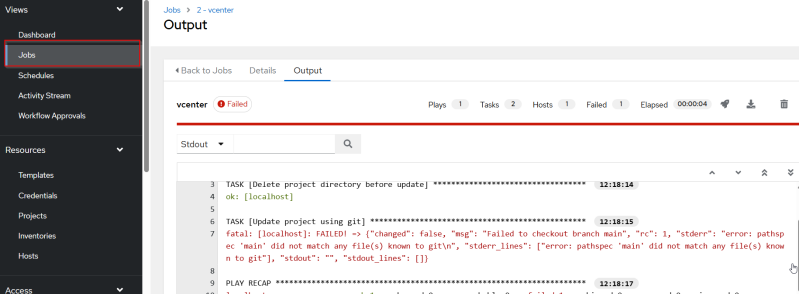

Go to Jobs to review the error.

In Jobs page you can see the error.

Lets try to troubleshoot by cloning the repo using the token.

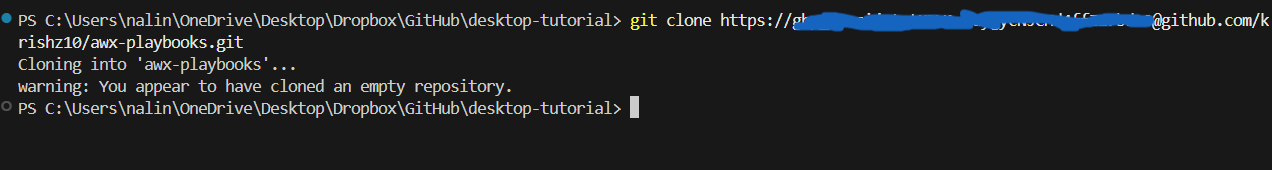

Open visual Studio Code and clone the repo using the token to see if it still gives error and if it is permission issue.

git clone https://Token@github.com/username/desktop-tutorial.git

If your repo is empty it will throw an error.

Make sure there is some files in the repo

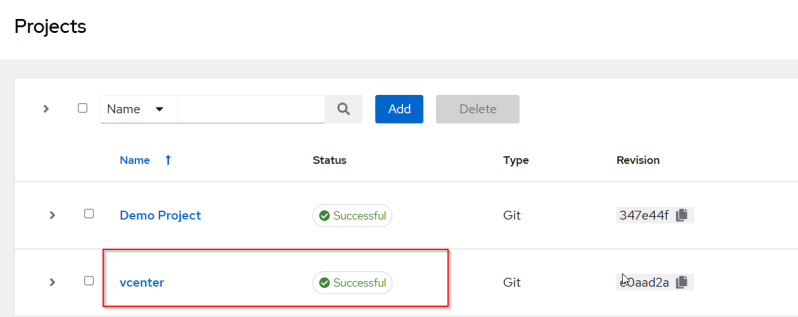

Go Back to the project again and perform sync again.
